Full Hydraulic Cable Drum Trailers 30 Ton

Full Hydraulic Cable Drum Trailers 30 tons

Full Hydraulic Cable Drum Trailers 30 Ton

The Full Hydraulic Cable Drum Trailers 30 Ton is a robust and efficient solution for handling large and heavy cable drums across various industrial sectors. Whether used in telecommunications, construction, or power distribution, this trailer is engineered for maximum durability, safety, and ease of operation.

High-Capacity Cable Handling with Precision Engineering

Designed to accommodate drums of varying sizes and weights, our hydraulic cable drum trailers provide effortless lifting, lowering, and unreeling. The advanced hydraulic system, controlled by a single operator, ensures smooth and precise drum rotation, eliminating the need for excessive manual labor. This results in faster cable laying operations with enhanced safety and efficiency.

Key Features and Benefits

Heavy-Duty Load Capacity: Supports up to 30 tons, making it ideal for large-scale projects.

Effortless Hydraulic Operation: Equipped with hydraulic hand jacks and lifting cylinders for precise control.

Enhanced Safety Mechanisms: Features overrunning and parking brakes, a secure locking system, and an automatic reverse driving mechanism for added stability and security.

Customizable Design: Available with adjustable height support wheels and custom color options, in addition to a hot-dip galvanized finish for superior corrosion resistance.

Versatile Applications: Perfect for use in power transmission, fiber optic cable deployment, and large-scale industrial cable installations.

Built for Long-Term Performance

Each trailer is manufactured using high-grade materials to withstand harsh working environments. Our engineering expertise and commitment to quality ensure that every unit meets industry standards for durability and reliability. Additionally, customization options allow clients to tailor the trailer to their specific operational needs.

Your Trusted Partner in Cable Handling Solutions

As one of the leading cable drum trailer manufacturers in Turkey, we take pride in delivering cost-effective, high-performance solutions to clients worldwide. Our products are trusted by industry professionals for their exceptional build quality, safety features, and efficiency.

For more details or to request a quote, contact us today and let us help you find the perfect cable handling solution for your business and Full Hydraulic Cable Drum Trailers 30 Ton.

SPECIFICATIONS

Purchase Number FHCDT-30
Length (mm) 6000 mm
Width (mm) 4500 mm
Height (mm) 2500 mm
Empty weight (kg) 6500 kg
Payload (kg) 30000 kg
Total weight (kg) 36500 kg
Brake airbrake
Max. drum dia. (mm) 5000 mm
Clear loading width (mm) 2800 mm
Drum Shaft Diameter 125 mm
Tyres 6
Tyres size Pilot tyres
Cable Opening Speed 18m/min
Engine Diesel Motor

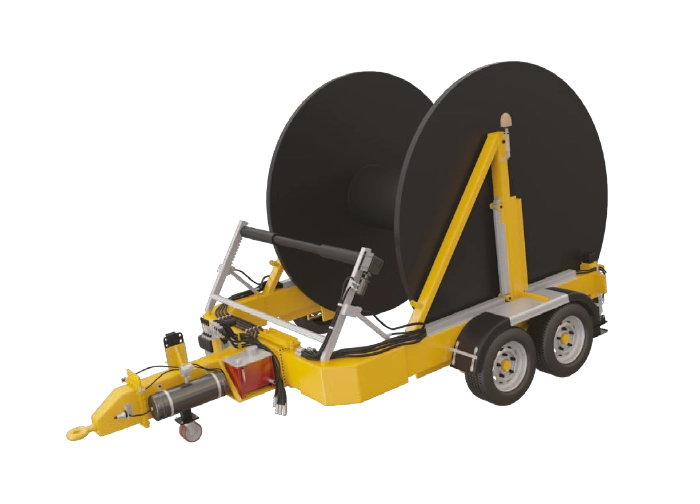

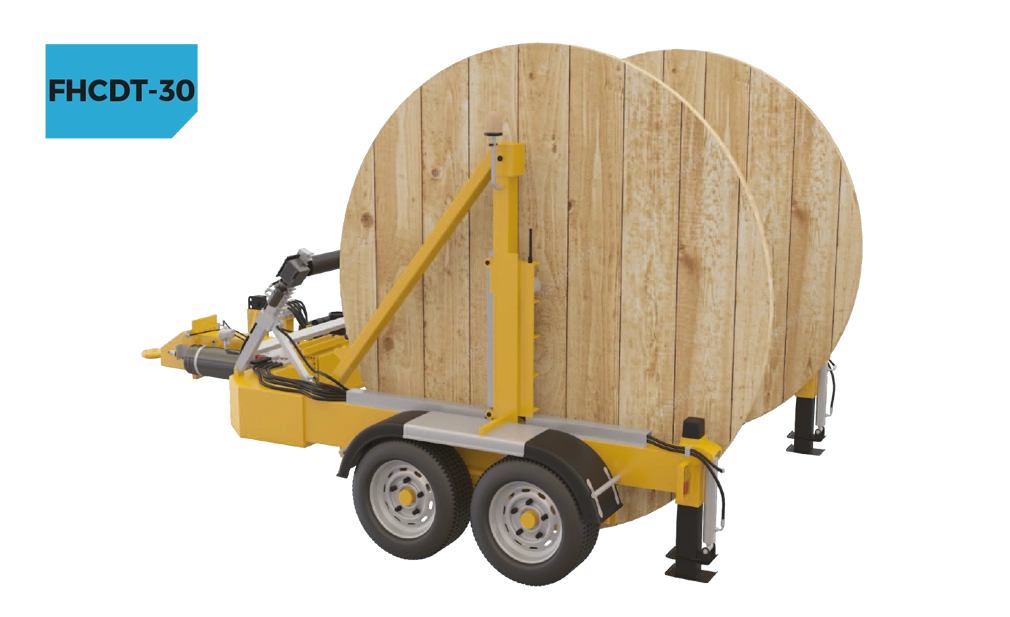

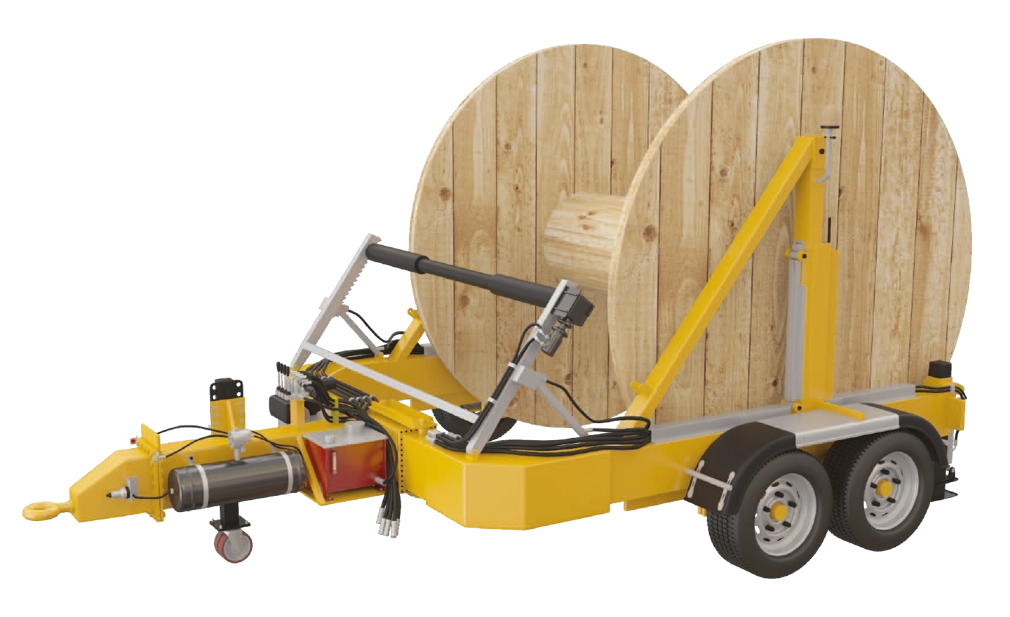

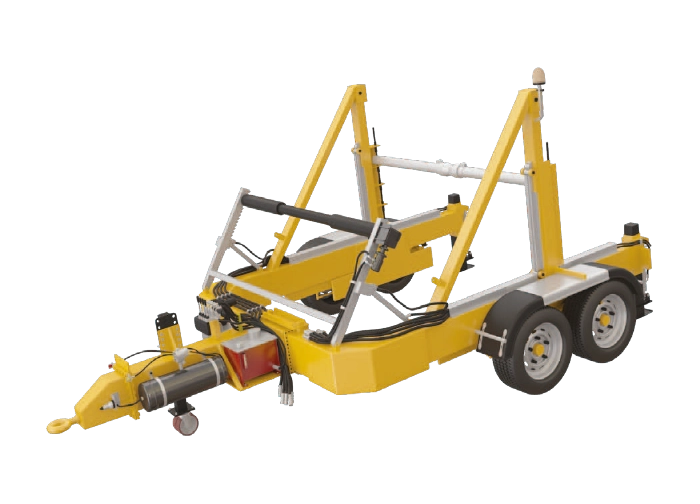

PHOTO GALLERY

Full Hydraulic Cable Drum Trailers 30 tons
Full Hydraulic Cable Drum Trailers 30 tons

TECHNICAL DRAWING

Full Hydraulic Cable Drum Trailers 30 tons
Full Hydraulic Cable Drum Trailers 30 tons
