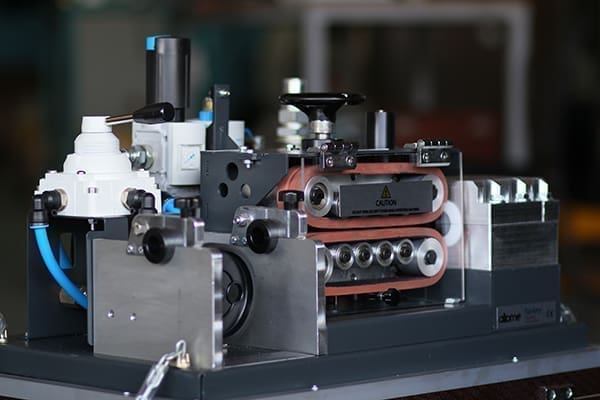

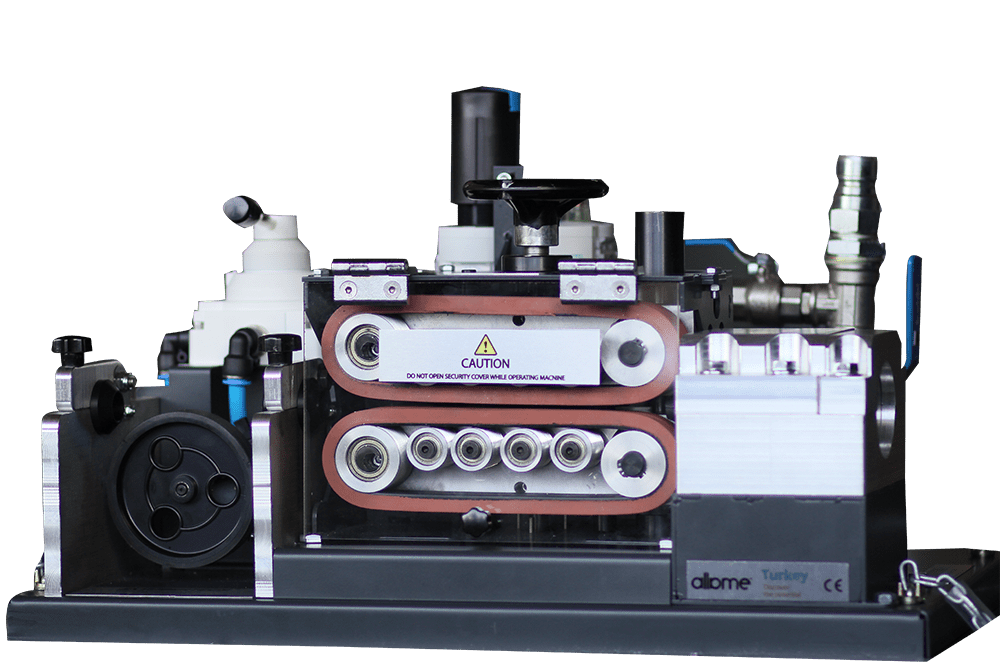

If you have a fiber optic cable which diameter range between 4mm and 12mm and you want to blow in a duct, the most easy way to do that is by using MINIFOK which have one pallet (belt) for 4mm to 12mm fiber optic cable and operated by one motor for blowing cables and tubes.



This machine is controlled by single technician and it produces low noise levels. Our MINIFOK can blow cables in tow directions forward and backward. The upward and downward movement of cable pusher belts is controlled by pneumatic piston and pressure regulating by regulator. This machine is so easy to handle, the cable pusher belt can be easily changed also the cable aligning parts can be changed easily.

mini fiber optic cable blowing machines mini fiber optic cable blowing machines Mini Fiber Optic Cable Blowing Machines MiniFOK Minijet fiber optic cable blowing machine 5

mini fiber optic cable blowing machines

MINIFOK is very solid and has a premium quality and there are many factors behind that like the stainless steel protection guard also the stainless steel machine box, in addition to that, it comes with FESTO marked air lubrication system and MINDMAN marked valve, and ELESA marked mechanical indicator.



The cable blowing process with the MINIFOK is safe due to the fact that it stops automatically before the cable breaks moreover it has a mechanical cable meter to measure the distance which the cable passed also it has a valve to get the pressurized air out.



With MINIFOK, you will receive hand tools with soft bag and one box of air lubrication oil in addition to the quick connection part

mini fiber optic cable blowing machines mini fiber optic cable blowing machines Mini Fiber Optic Cable Blowing Machines MiniFOK Minijet fiber optic cable blowing machine 4

mini fiber optic cable blowing machines

Here you can find the technical specifications:

  • MINIFOK: MINI FIBER OPTIC CABLE BLOWING MACHINE
  • CONTROLL BY TECHNICIAN.
  • DUCT DIAMETER =10 MM TO 40 MM.
  • CABLE DIAMETER = 5 MM TO 12 MM.
  • NEEDED AIR= MINIMUM 12 BAR – 10.5 METERCUP / MINUTE.
  • DIMENSIONS= 44CM X 36 CM X 59 CM
  • WEIGHT = 50 KG
  • CABLE INSTALLING VELOCITY =0-30-50 METER / MINUTE
  • DIRECTION =FORWARD AND BACKWARD
