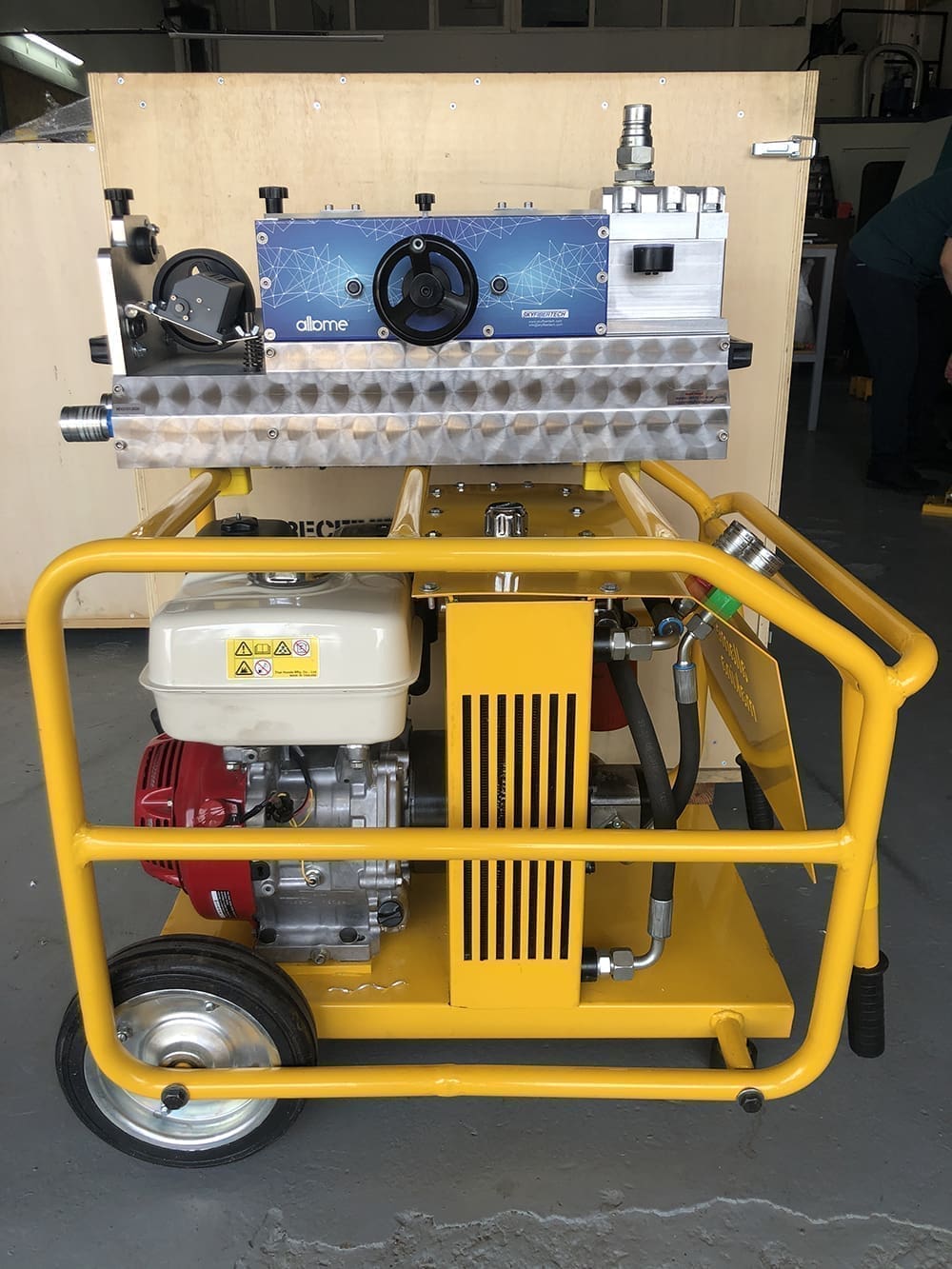

HYDROFOK is created to blow cable and tubes in ducts. You have to replace palette group and some other parts to convert machine from tube blowing to cable blowing or vice versa. HYDROFOK works with the hydraulic power unit and the reason for that is motors on HYDROFOK are operated with compressed hydraulic oil. You can use KOSMAK’s hydraulic power unit with HYDROFOK. this machine is powerful thanks to the Hydraulic motors  in addition to that FOK design in HYDROFOK make benefit from  all the sent air in duct so that cable blowing with HYDROFOK is much comfortable  than blowing with FOK (in FOK machine part of the air is used by the air motors). By the power of HYDROFOK, you are able to blow larger cables diameters and lots of tubes together. There are some disadvantages of HYDROFOK from the side of Fok design. This machine works with hydraulic power unit (the compressor alone is sufficient in FOK machine), and it is heavier than FOK and larger than FOK.

In standard, HYDROFOK machine duct diameter is 50 mm. We are producing tools for many duct diameters, which is ordered by customers.

And here are some technical specifications

hydraulic fiber optic cable blowing machines hydraulic fiber optic cable blowing machines Hydraulic Fiber Optic Cable Blowing Machines Hydrofok superjet cable blowing machines 5 688x1030

hydraulic fiber optic cable blowing machines

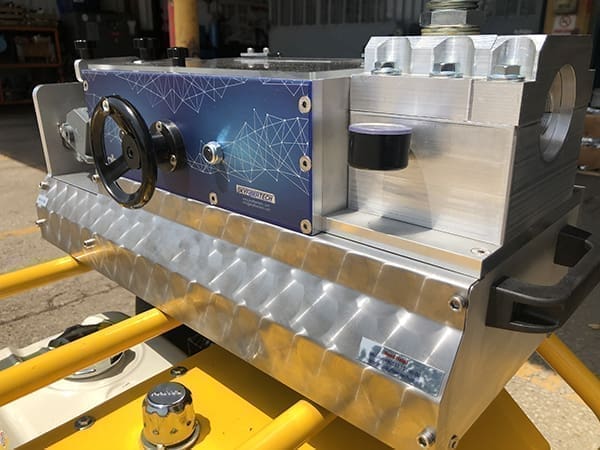

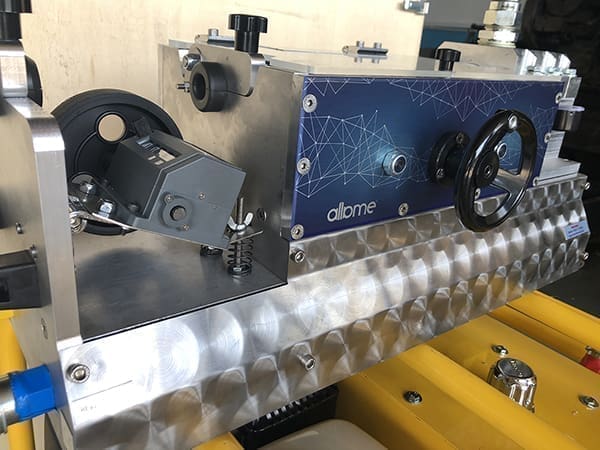

HYDROFOK: Hydraulic Fiber Optical Cable & Tube blowing machine

CONTROL: By technician

NEEDED AIR: 12 bar 10 m³/min. (minimum)

HYDRAULIC MOTORS: Double effective, 57-newton meter (2 pieces)

NEEDED OIL FOR MOTORS: 20 liter/min.

CABLE and TUBE BLOWING VELOCITY: 15 meter / minute

DIMENSIONS (width x length x height): 125cm x 94cm x 78cm (hydrofok and hydraulic power unit together)

WEIGHT OF MACHINE: 155kg (hydrofok and hydraulic power unit together)

hydraulic fiber optic cable blowing machines hydraulic fiber optic cable blowing machines Hydraulic Fiber Optic Cable Blowing Machines Hydrofok superjet cable blowing machines 2

hydraulic fiber optic cable blowing machines

hydraulic fiber optic cable blowing machines

FIBRE OPTIC CABLE DIAMETERS

hydraulic fiber optic cable blowing machines

You need to change palette group and some parts to modify

machines cable diameter range.

Diameter 9mm-14mm

Diameter 14mm-20mm

Diameter 20mm-25mm



TUBE DIAMETERS AND QUANTITY

You need to provide us with data about the diameter of tubes

and the quantity of tubes that you want to blow in one time.

There are some examples at below.

Tube Dia.=12mm / Quantity=4

Tube Dia.=6mm / Quantity=7
